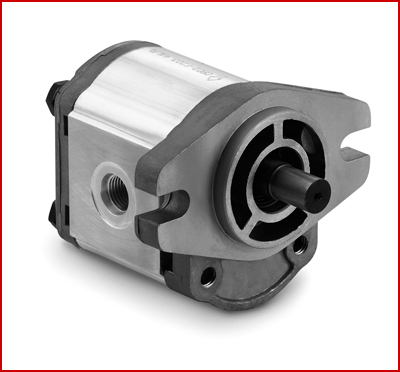

Hydraulic Gear Pump
Model GP-F10

Constructed of an aluminium center section and cast iron end plates, model GP-F10 is a high pressure hydraulic gear pump with 8 displacement size from 0.07 - 0.48 in³/rev (1.3 - 8.0 cm³/rev). The standard mounting flange is a SAE "AA" 2-Bolt; standard ports are SAE-8 inlet and SAE-6 outlet; and the drive shaft is a 1/2" diameter straight shaft with an 1/8" key.

   F10 Pump Catalog Page


Select Your Pump Options





Part to order:


Pump Specifications

Model

Displacement
in³(cm³) / rev

Pressure
psi

Speed - rpm

Weight
lbs

Rated

Max
GP-F10-13 0.07 (1.3) 3625 2000 5000 2.02
GP-F10-20 0.12 (2.0) 3625 2000 5000 2.31
GP-F10-27 0.16 (2.7) 3625 2000 5000 2.68
GP-F10-34 0.20 (3.4) 3625 2000 5000 2.99
GP-F10-41 0.25 (4.1) 3625 2000 4000 3.34
GP-F10-51 0.31 (5.1) 3625 2000 4000 3.78
GP-F10-61 0.37 (6.1) 3625 2000 4000 4.18
GP-F10-80 0.48 (8.0) 3480 2000 4000 5.01

See catalog page for additional details.
