CDS Series

• 1 1/2" to 4"
• Steel Case
• Phosper Bronze Bourdon Tube
• Vacuum to 10,000 PSI
• PSI & BAR (KPA referenced)
• Accuracy 1.6% FSD
• -40° to 180°
• Built in Snubber

CDS Series

• 2" and 2 1/2"
• Steel Case
• Phosper Bronze Bourdon Tube
• Vacuum to 10,000 PSI
• PSI & BAR (KPA referenced)
• Accuracy 1.6% FSD
• -40° to 180°
• Built in Snubber

CF Series

• 1 1/2", 2" and 2 1/2"
• Glycerine Filled
• Stainless Steel Case & Bezel
• Phosper Bronze Bourdon Tube
• Vacuum to 10,000 PSI
• PSI & BAR (KAP referenced)
• Accuracy 1.6% FSD
• -40° to 180°
• Bronze Connection

CF Series Swivel

• 2 1/2" with SAE Swivel
• Glycerine Filled
• Stainless Steel Case & Bezel
• Phosper Bronze Bourdon Tube
• Vacuum to 10,000 PSI
• PSI & BAR (KAP referenced)
• Accuracy 1.6% FSD
• -40° to 180°
• SAE 7/16-20 Bronze Connection

PDLC Series

• 4" Glycerine Filled
• Stainless Steel Case & Bezel
• Phosper Bronze Bourdon Tube
• Vacuum to 10,000 PSI
• PSI & BAR (KAP referenced)
• Accuracy 2% FSD
• -40° to 180°
• Bronze Connection
• Stem, Center Back & Panel Clamp

CFC Series

• 4" Glycerine Filled
• Stainless Steel Case & Bezel
• Phosper Bronze Bourdon Tube
• Vacuum to 10,000 PSI
• PSI & BAR (KAP referenced)
• Accuracy 1.6% FSD
• -40° to 180°
• Bronze Connection
• Stem, Lower Back Panel Mount & Front Flange
• Built in Relief Valve & Snubber

PDSS Series

• 2 1/2" Stainless Steel
• Liquid & Dry Filled
• Vacuum to 30,000 PSI
• PSI & BAR (KAP referenced)
• Accuracy 1.6% FSD
• -13° to 150°
• Process Temperature Max 200°

PDSS Series

• 6" Stainless Steel
• Liquid & Dry Filled
• Vacuum to 30,000 PSI
• PSI & BAR (KAP referenced)
• Accuracy 1.0% FSD
• -13° to 150°
• Process Temperature Max 200°

PDTG Test Gauges

• 6" Dry Filled
• Panel Mount
• Accuracy 0.50 FSV
• Stainless Steel Case & Tube
• Adjustable Pointer is Micrometer Knife Type
• Reinforced Movement is AISI 316
• Max Working Press 75% FSV
• 60° to 150°
• Mirrored Dial

Gauge Snubbers

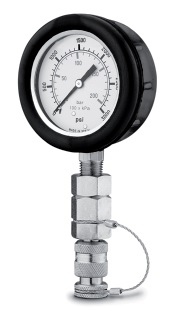

Gauge Protectors

Certificate of Accuracy
