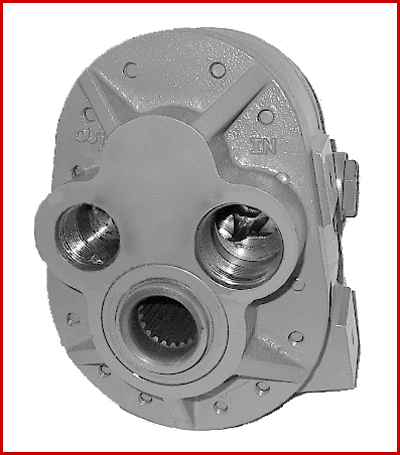

Hydraulic Gear Pump
Model GP-PTO - Rear Ported

Model GP-PTO is a Power Take Off gear pump constructed with cast iron end plates and aluminium center section. This rear ported pump offers 9.76 in³/rev (160 cm³/rev) displacement and higher flows at reduced engine rpm as compared to other PTO pumps. The standard drive on our rear ported model is a 1 3/8" diameter 21-tooth female spline.

   PTO Pump Catalog Page


Select Your Pump Options



Part to order:


Pump Specifications

Model

Displacement
in³(cm³) / rev

Pressure
psi

Speed - rpm

Weight
lbs

Rated

Max
GP-PTO-A-9-21-R 9.76 (160) 2500 1000 1100 40

See catalog page for additional details.
